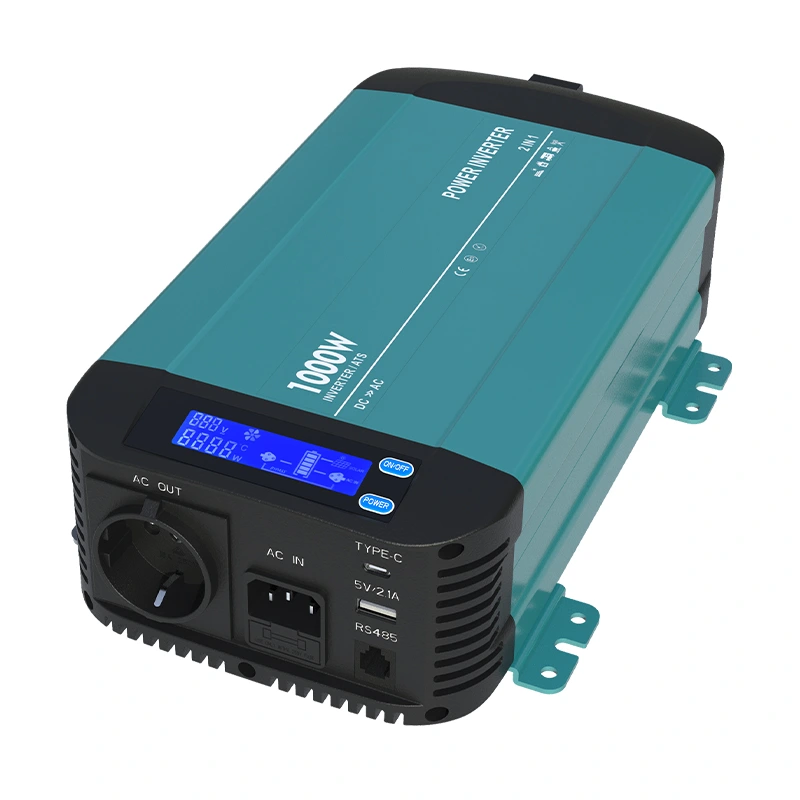

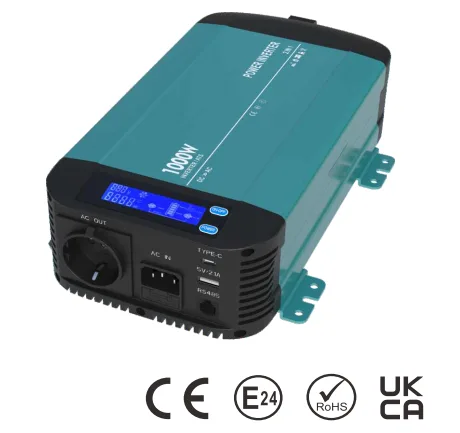

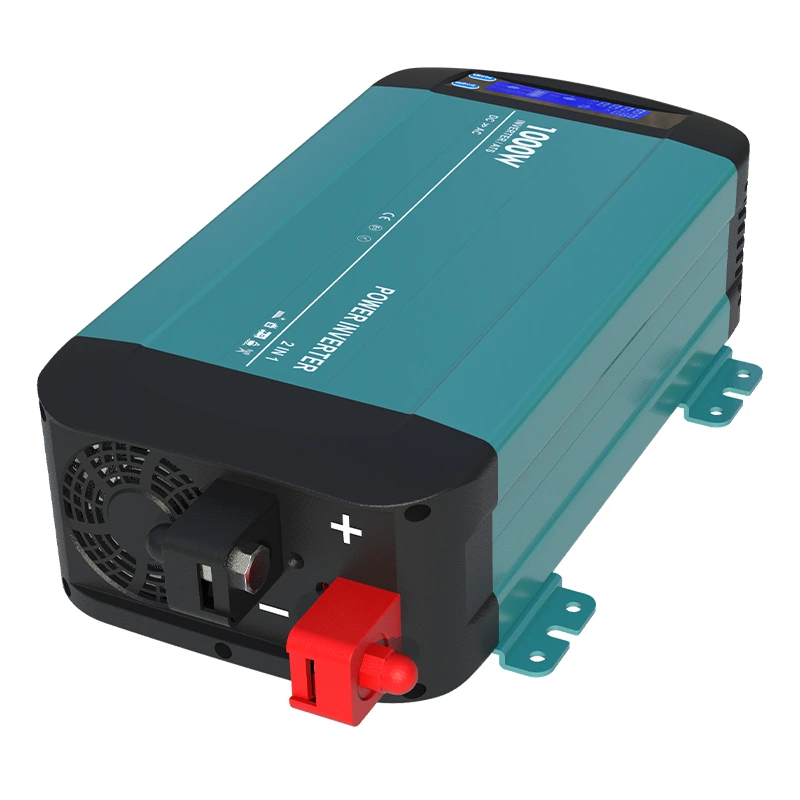

1000W gelombang gelombang murni kanthi nggunakake Fungsi HK1000pt

Model:HK1000PT

Kanthi pirang-pirang taun pengalaman ing produksi gelombang inverter suci, kosun bisa nyedhiyakake macem-macem inverter saring. Kualitas Tinggi Sines 1000W kanthi fungsi bypass kanthi fungsi Bypass HK1000pt bisa ketemu pirang-pirang aplikasi, yen sampeyan butuh, entuk layanan kanthi tepat ing wektu iki.

Kirim Pitakonan Unduh PDF

Deskripsi Produk

Ing ngisor iki minangka introduksi inverter gelombang murni murni sing berkualitas tinggi, ngarep-arep bisa mbantu luwih ngerti 1000W Inverter Sines Murni kanthi fungsi Bypass HK1000pt. Sugeng pelanggan anyar lan lawas supaya terus kerja bareng karo kita kanggo nggawe masa depan sing luwih apik!

Fitur:

● output gelombang sine (thd <5%)

● Power ON / OFF SWITCH

● efisiensi dhuwur nganti 92%

● Breacer sirkuit AC lan AC AC

● Transfer wektu kurang saka 1 6ms.

● usb: 5v /2.1a / jinis c: maks 35w

● Komunikasi Rs-485

● Input & output isolasi kanthi lengkap

● Proteksi input: mundur polaritas (sekring) / ing voltase / liwat voltase

● Perlindungan Output: Circuit cendhak / Overload / Suhu / Liwat Voltase

Model		HK1000PT-112	HK1000PT-124	HK1000PT-212	HK1000PT-224
Output	Kekuwatan peringkat	1000 watt
	Power Peak (Max.2 Sec.)	2000 watt
	Gelombang	Gelombang Sine murni
	Efisiensi (min.)	89%
	Voltase Output (@rated VDC)	100/110/115 / 120vac ± 10%		200/220/230 / 240vac ± 10%
	10.8VDC	50 / 60Hz ± 1
	Distorsi harmonik total (thd)	<5%		<5%
Output	Voltase dc	12VDC	24VDC	12VDC	24VDC
	Range Voltase	10.0 ~ 16.0vdc	20.0 ~ 32.0VDC	10.0 ~ 16.0vdc	20.0 ~ 32.0VDC
	Ora ana konsumsi daya beban	@ 12.8VDC	@ 25.6VDC	@ 12.8VDC	@ 25.6VDC
	Ing mode @ ora mbukak mode	<0.42A	<0.21A	<0.42A	<0.21A
	Sekring	45A × 3	45A × 2	45A × 3	45A × 2
Input AC	Kisaran AC	100/110/115 / 120vac ± 10%		200/220/230 / 240vac ± 10%
	Setelan pabrik frekuensi	50/60 Hz
	Ngalih transfer	AT standar: inverter kanggo sarana AC: 8 ~ 10ms.; Sarana ac kanggo inverter: 16 ~ 25ms.
Perlindhungan	Bat.low weker ± 0.2v	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	Bat.low ditutup ± 0.2v	10.0VDC	20.0vdc	10.0VDC	20.0vdc
	Bat.low Wiwiti maneh ± 0.2v	12.5VDC	25.0vdc	12.5VDC	25.0vdc
	Bat.High mati ± 0.2v	16VDC	32vdc	16VDC	32vdc
	Bat.High Wiwiti maneh ± 0.2	15.8VDC	31.6VDC	15.8VDC	31.6VDC
	0 ~ + 60 ℃	Polaritas mbalikke (sekring) / ing voltase / liwat perlindungan voltase / AC liwat saiki (breaker)
	Perlindungan output	Circuit cendhak / Overload / Suhu / Liwat Voltase
Lingkungan	Makarya temp.	0 ~ + 60 ℃
	Temp panyimpenan.	0 ~ + 70 ℃
	Kelembapan relatif	Max.90%, ora kondensasi
Safety & emc	Standar Safety	En62109-1: 2010, en62109-2: 2011
	Standar EMC	En 55032: 2015 + A1: 2020; ing 55035: 2017 + + a11: 2020; en IEc61000-3-2: 2019 + A1: 2021
		En61000-3: 2013 + A1: 2019 + A2: 2021
	E-Mark	Ece-r10
Kontrol & Sinyal	Tampilan LCD	Voltase voltase / output / Temerature / output voltase / Cooling / Status Kerja
	Remot kontrol	RS485
Liyane	Dimensi (w × h × d)	309 × 182 × 87 mm
	Bobot	3.38Kg
	Kelangan	Penggemar Kontrol termal
	Port komunikasi	Konektor jinis RS-485 (RJ-11)
Cathetan	Tes 1.value dening voltase input ing 12,8v / 25.6V / 50.4v; 2. Kabeh paramèter diukur kanthi narkoba, 25 Suhu sekitar;

Gambar Mekanik: (309x182x87 mm)

Model: HK1000pt
